The Story: Somewhere on the production line, counterweight retaining rings were not being seated or inspected properly. This quality escape led directly to field failures, including two ground engine seizures and an in-flight loss of oil pressure. Because these retaining rings secure the crankshaft counterweight retention system, a loose ring allows the counterweight to lose retention entirely. A displaced counterweight on a spinning crankshaft doesn't just cause a rough-running engine; as the FAA's AD notes, an unaddressed ring can cause loss of engine oil pressure, catastrophic engine damage, and engine seizure.

Continental called it a "quality escape": a manufacturing defect that should have been caught on the factory floor and wasn't. The FAA moved fast: AD 2023-04-08 went into effect February 23, 2023, requiring inspection of affected crankshaft assemblies before further flight across a sprawling list of Continental's most common reciprocating engines, including the GTSIO-520, IO-360, IO-470, IO-520, IO-550, TSIO-360, TSIO-520, and TSIO-550.

Then the story kept growing. Within 20 days, operators and Continental confirmed that six engine models had been left off the original list by mistake. On March 15, the FAA superseded its own three-week-old directive with AD 2023-05-16, widening the scope and revising special flight permit conditions along the way.

‍

Field Notes

• Subject AD: 2023-05-16 (Amendment 39-22385, Docket FAA-2023-0435), effective March 15, 2023. Supersedes AD 2023-04-08 after just 20 days.

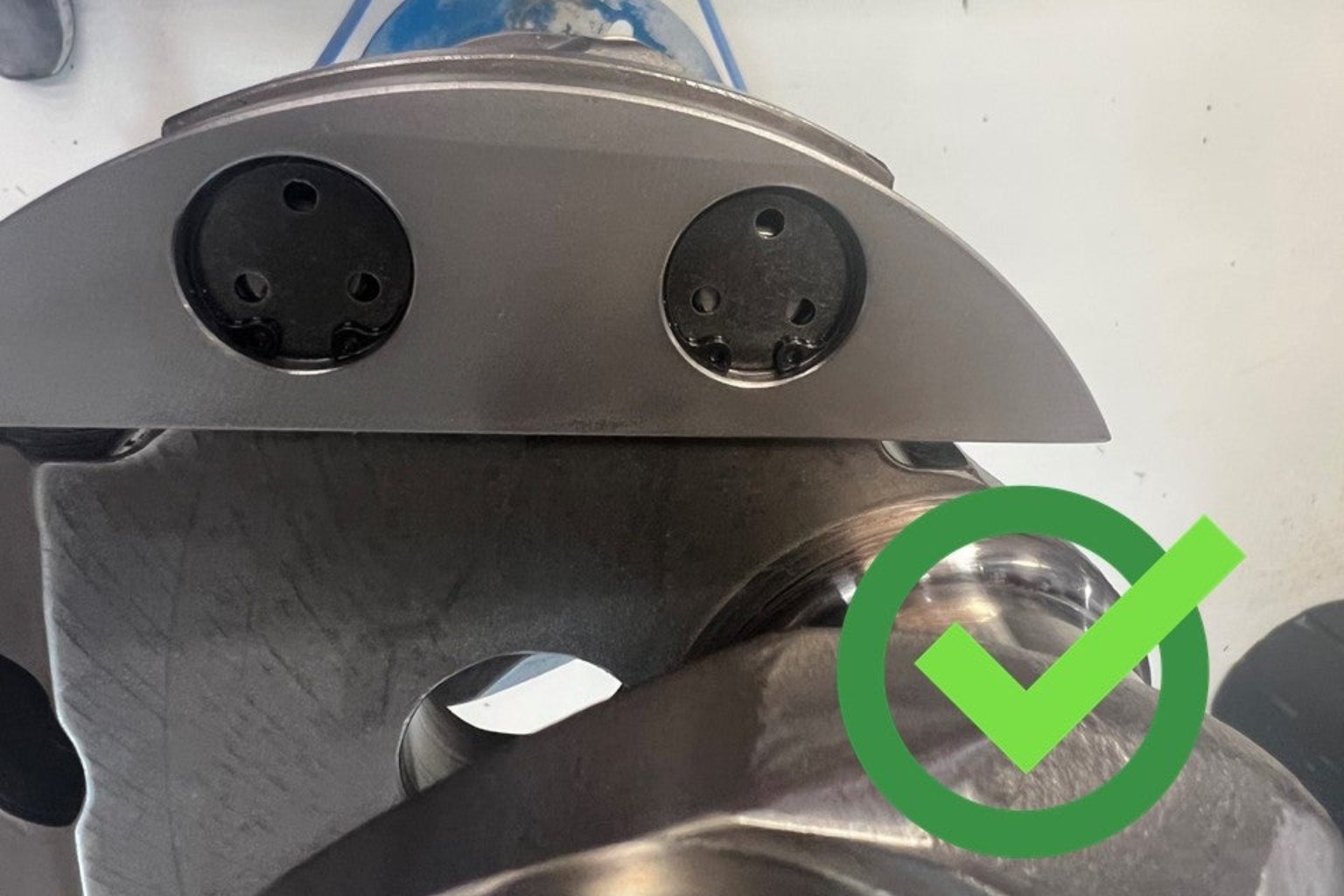

• Unsafe Condition: Counter weight retaining rings improperly installed or inspected in the crankshaft groove during manufacture. Linked to two ground engine seizures and one in-flight loss of oil pressure.

• Expanding Scope: The original AD covered 2,176 crankshaft assemblies (1,632 U.S.-registered). The superseding AD added six engine models (IO-470-A, -C, -F, -LO, and TSIO-360-F, -FB), expanding the total to 2,211 assemblies (1,659 U.S.-registered).

• Required Action: Inspect affected assemblies per Continental MSB23-01A before further flight. Corrective action is required if any ring is improperly seated. How many cylinders come off depends on the engine: one on an O-470-R or a 360-series powerplant, three on a GTSIO-520, two on everything else affected, a function of how many counter weights that crankshaft carries.

• Applicability Roadmap: (Note: Regulatory AD text governs if conflicts arise).

◦ Step 1: If the engine S/N is in Appendix 1 of MSB23-01A → perform Paragraph III actions.

◦ Step 2: If not, but the crankshaft was installed/repaired on or after June 1, 2021, and its P/N and S/N are in Appendix 2 → perform Paragraph III actions.

◦ Step 3: If the crankshaft matches neither appendix → no further action required.

• Special Flight Permit Shift: The original AD strictly required zero metal contamination in the oil filter. The revision acknowledged that newer engines shed trace metal during normal break-in, allowing a qualified mechanic to evaluate debris before approving a one-time ferry flight.

‍

Why It Matters: This is what a manufacturing defect looks like when caught after delivery rather than on the factory floor: an internal defect, invisible from the outside, discovered only after engines started seizing in the field.

The 20-day gap between the two ADs is the key lesson. The initial scope was incomplete, requiring field mechanics, operators, and the manufacturer to quickly flag the models that were left out. For anyone maintaining a Continental-powered aircraft, the take away is simple: this wasn't a design flaw or a wear issue; it was an assembly mistake hidden deep inside the engines. The only way to guarantee safety was to pull cylinders and verify.

‍

Need the complete AD? Download the complete AD here.‍
